    Direct Drive PM Motor For Rotary Screw Air Compressor

    Ask Lasest Price
    Brand Name : ENNENG
    Model Number : PMM
    Certification : CE,UL
    Price : USD 500-5000/set
    Payment Terms : L/C, T/T
    Supply Ability : 20000 sets/year
    Delivery Time : 15-120 days
    • Product Details
    • Company Profile

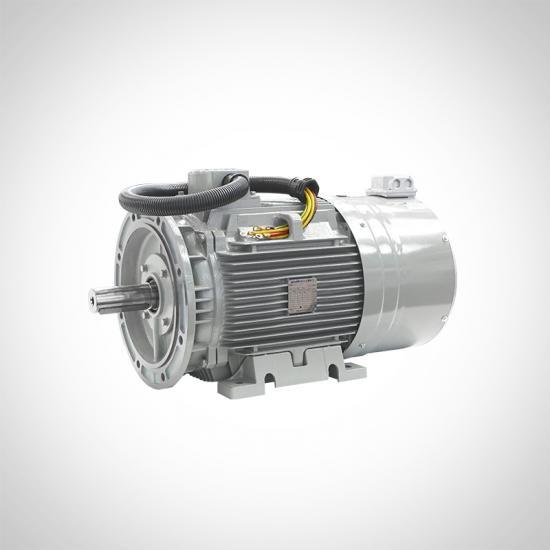

    Direct Drive PM Motor For Rotary Screw Air Compressor

    Direct Drive PM Motor For Rotary Screw Air Compressor

    Product Parameters:


    ModelRated power(KW)Rated voltage(V)Rated current(A)Rated speed(r/min)Efficiency(%)Power factorRated frequency(Hz)Service factor
    TYC7.5-3000-Z132S67.538012.8300093.00.961501.2
    TYC11-3000-Z132S61118.594.0
    TYC15-3000-Z132S61525.294.3
    TYC18.5-3000-Z160M618.531.094.4
    TYC22-3000-Z160M62236.894.6
    TYC30-3000-Z160L63050.095.0
    TYC37-3000-Z160L63761.395.5
    TYC45-3000-Z180M84574.595.6200
    TYC55-3000-Z180M85590.995.8
    TYC75-3000-Z225M87512396.2
    TYC90-3000-Z225M89014896.5
    TYC110-3000-Z225L811018096.8
    TYC132-3000-Z225L813221597.0
    TYC160-3000-Z225L816026197.0
    TYC185-3000-Z250M818530197.0
    TYC-200-3000-Z250M820032697.0
    TYC-200-3000-Z250L822035997.0
    TYC-200-3000-Z250L825040897.0
    Architectural feature:
    Frame size132160180200225250M/L280M/L
    Mechanical Properties
    Frame/End shield
    /Terminal boxes
    MaterialCast Iron
    MountingB3/B35
    IP GradeIP23
    Cooling MethodIC01(ODP)
    EarthInside the wiring cover and the machine base
    BearingDust cover/clearanceZZ/C3/C3
    Bearing fixDE fix, NDE with Wave spring washer
    DE fix
    bearings
    3000rpm630863096312631263136314/63186314/6318
    1500rpm630863096312631263136318/63186318/6318
    NDE fix
    bearings
    3000rpm630863096312631263136314/63166314/6316
    1500rpm630863096312631263136316/63166316/6316

    Lubrication
    MaterialESSO UNIREX N2
    Oil pipe/End shield oiling devicepipe
    plugWith rubber blind cover for transportation and storage
    ShaftMaterialSteel45#
    B type
    vibration limit
    (mm/s)
    1.62.2
    Balance1/2 key G2.5 grade

    Nameplate

    Material
    Aluminum alloy
    Electrical performance
    Voltage380/400V(or440/460V)three terminals

    Winding
    Materialhigh purity copper
    Dipping
    method
    VPI and drying

    Insulation grade
    155(F)
    Service Factor1.0/1.2/1.3
    stator and rotor
    lamination
    silicon steel
    permanent magnetNdFeB

    Product Description:

    The TYC series ultra-ultra-high-efficiency rare earth permanent magnet synchronous motor that exceeds the IE4 efficiency standard is the latest special motor for compressors developed by our company. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates without encoder vector control, and has a magnetic steel structure. , has the advantages of high efficiency, reliable operation and good installation interchangeability.

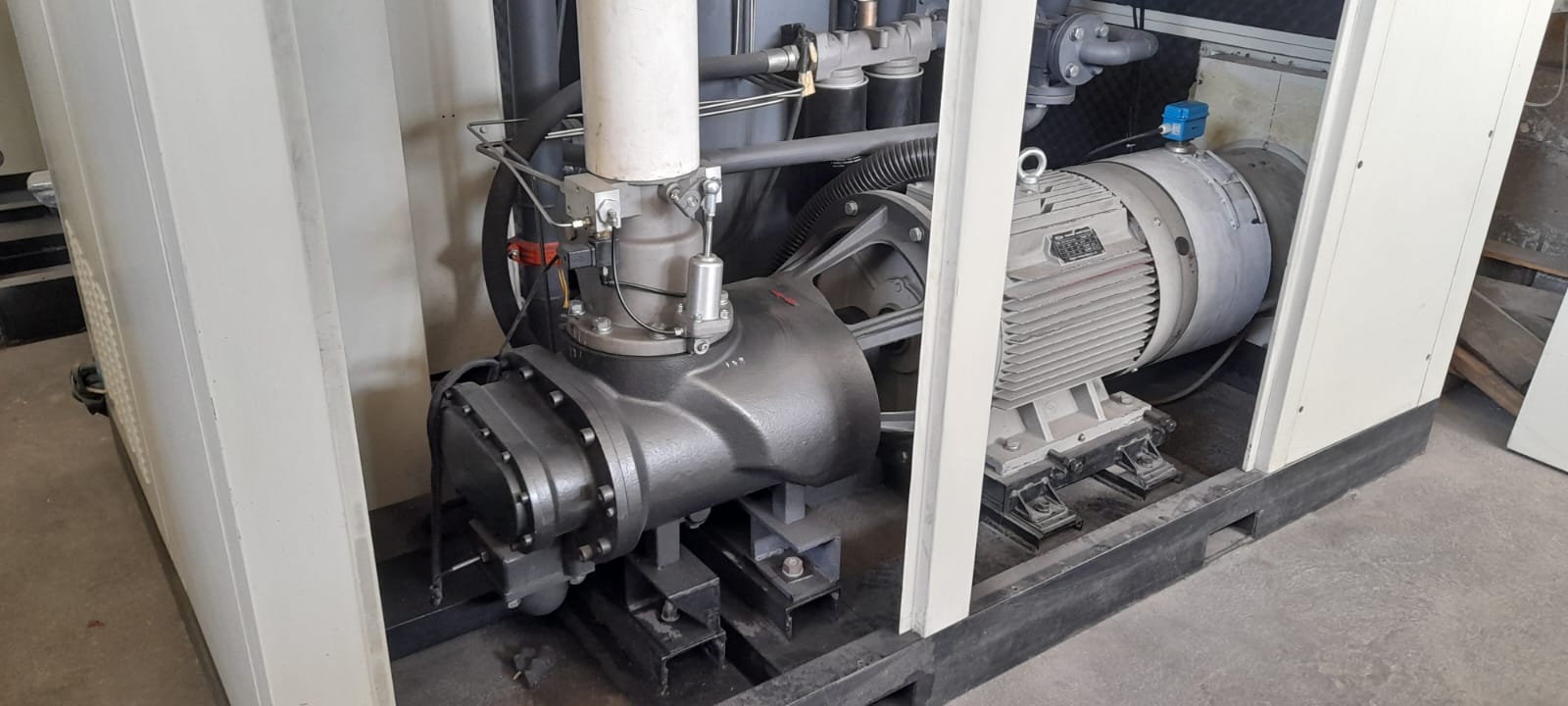

    Detailed pictures
    Direct Drive PM Motor For Rotary Screw Air Compressor

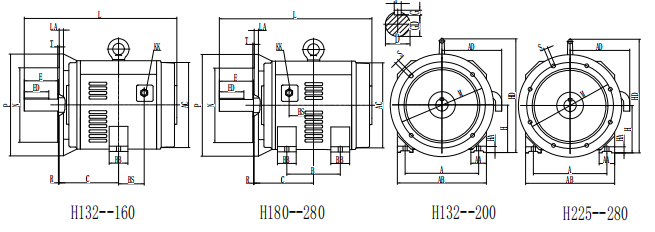

    Installation outline drawing:
    B3/B35 sizeUniversal size
    Frame sizeAAAABBBBHAHKCACADBSKKL
    3000rpm1500rpm
    132S216632701401902013212892752130M33508
    132M178230546
    160M25473320210274201601510833026065M33659
    160L25431887714
    180M27973355241315221801512138028067M48738
    180L27935586778
    200L31873395305375252001913340030586M48820
    225S35683435286375282251914947033587M48820
    225M311400100845
    280S457935503684903528024190547400158M64985
    280M4195401841035
    315S5081206354065754531528216645530162M7511851215
    315M45768518812951325

    Universal size(轴伸)B35/B5/V1 size
    Frame sizeDE/DEFGGDNMPSTRLA
    3000
    rpm
    1500
    rpm
    3000
    rpm
    1500
    rpm
    3000
    rpm
    1500
    rpm
    3000
    rpm
    1500
    rpm
    3000
    rpm
    1500
    rpm
    132S38k680/7010338230j6265300154014
    132M
    160M42k6110/8012378250j6300350195015
    160L
    180M48k6110/801442.59250j6300350195015
    180L
    200L55m6110/80164910300j6350400195017
    225S60m6140/100161849531011350j6400450195020
    225M
    280S65m675m6140/10018205867.51112450j6500550195022
    280M
    315S65m680m6140/100170/140182258711114550600660246025
    315M

    Features:
    • Simple and reliable structure: no encoder vector control, can realize unlimited start and stop.
    • High protection level: IP55 protection level avoids the disadvantages of low protection level motor permanent magnets absorbing iron dust and blocking the air gap.
    • Strong anti-demagnetization ability: It adopts an intercalated magnetic steel structure and designs a higher maximum demagnetization working point.
    • Good installation interchangeability: the shape and installation dimensions of the motor are consistent with those of ordinary asynchronous motors, and the design of the host does not need to be modified, which is suitable for both new machines and old machines for energy-saving renovation.
    • Ultra-high efficiency operation: Really ultra-high efficiency, the efficiency is higher than the standard value of IE4 efficiency (the stray loss is recommended according to the 112B method).
